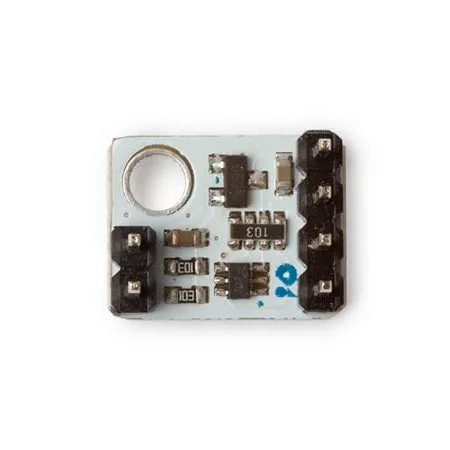

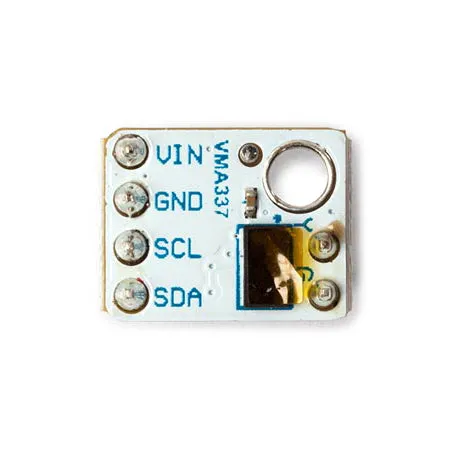

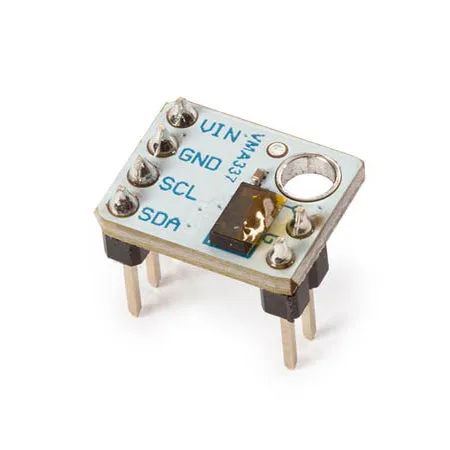

This breakout board is a time-of-flight or laser-ranging sensor that can measure the range to a target object of up to 2 m away.
Features
- ST's VL53L0X laser-ranging sensor
Specifications
- power supply: 3.3 - 5 VDC
- infrared emitter: 940 nm
- measuring range: 30 to 2000 mm
- ranging accuracy: /- 3 %
- sampling time: <= 30 ms
- operating temperature: -20 to 70 °C
- interface type : I2C
- supply current: 10 mA
- XSHUT and GDPIO voltage: max 2.8 V
