Name: M5Stack Core ESP32 IoT Development Kit - Grey (9Axis Sensor) [discontinued]
SKU: 534861

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.

A starter kit for the modular, stackable, and portable M5Stack IoT development board series, with a range of inbuilt motion sensors.

Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.

The Grey kit includes a built-in 9-Axis IMU sensor (6-Axis posture acceleration measurement and 3-Axis magnetic measurement), which lets you detect acceleration, angle, and trajectory - ideal for collecting sports data or a 3D remote gesture controller.

Product Features

ESP32-based
Built-in Speaker, Buttons, LCD
TF card slot (Up to 16GB support)
Battery Socket & Lipo Battery
Extendable Pins & Holes
M-Bus Socket & Pins
Development Platform , ,

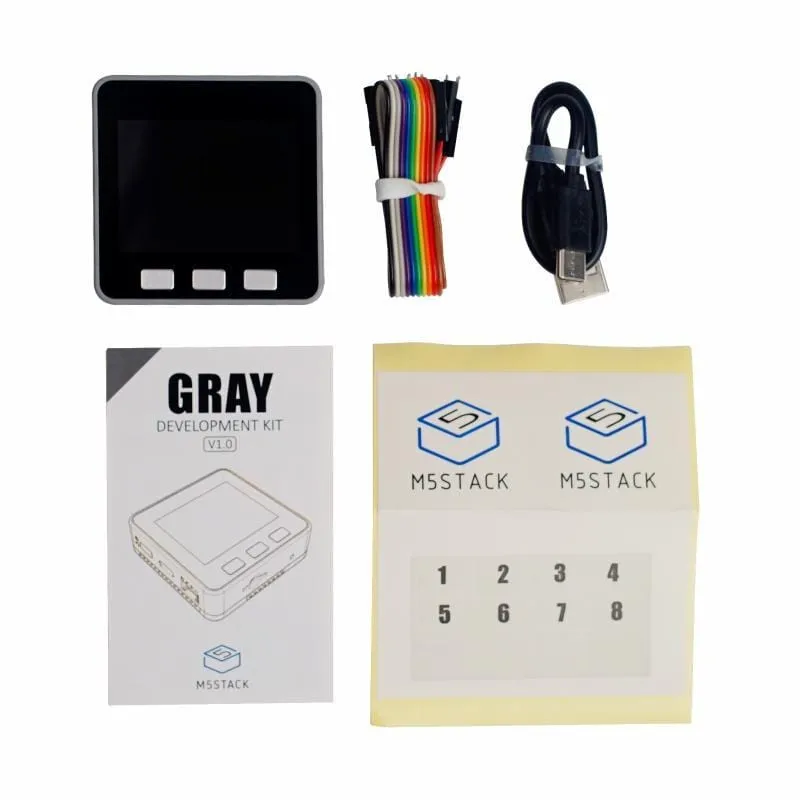

Includes

1x Gray
10x Female-male Dupont connectors
1x Type-C USB cable (20cm)
1x User Manual
1x Sticker

Applications

Internet of things terminal controller
Stem education product
DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory	16MB (old: 4MB)
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C I/0 UART) x 1

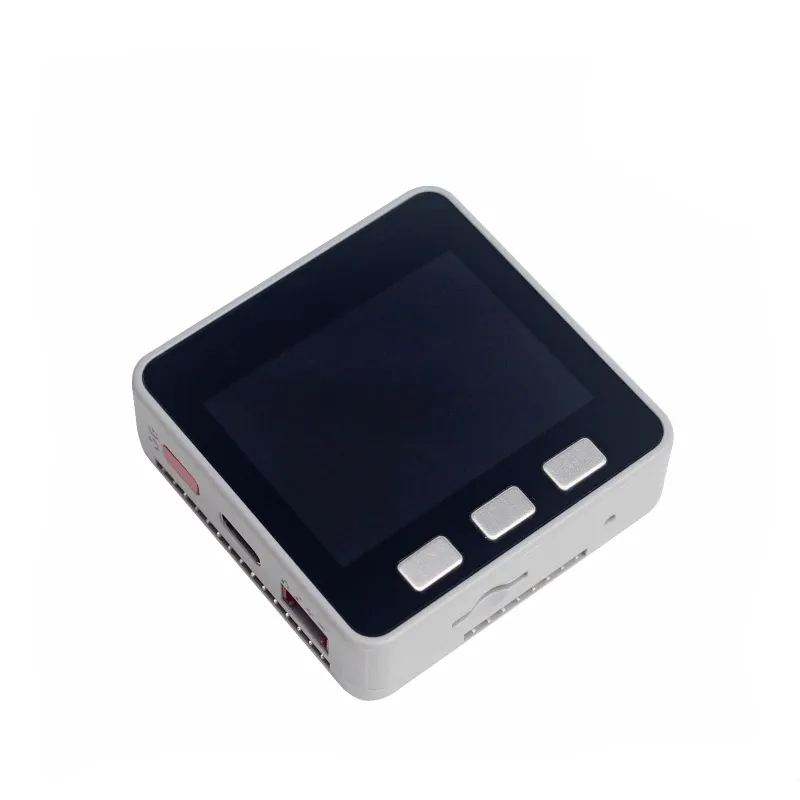

IPS Screen	2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Speaker	1W-0928
Button	Custom button x 3

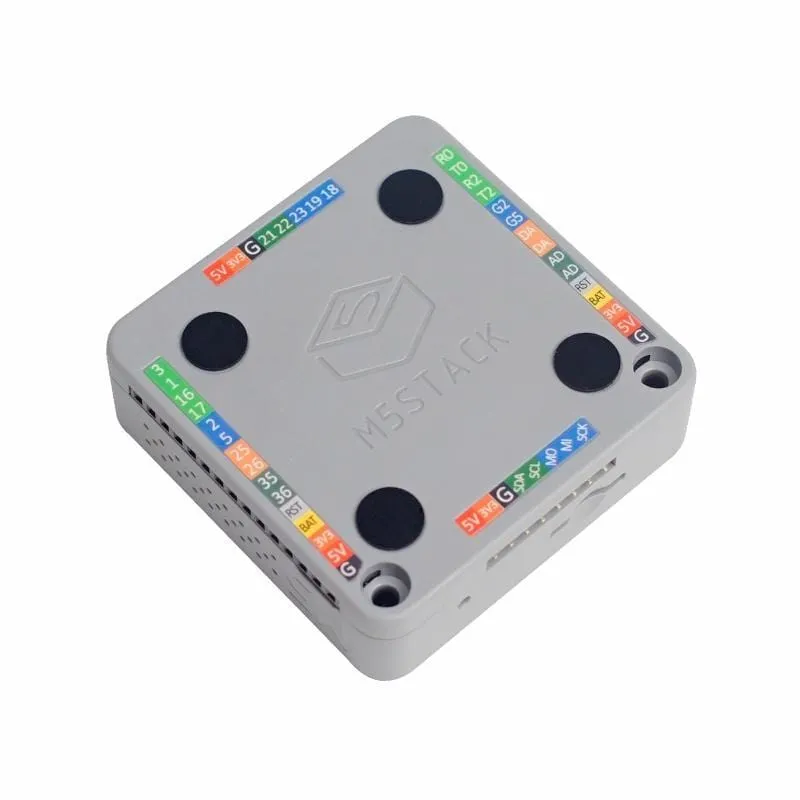

Core Bottom Port	PIN (G1，G2，G3，G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
MEMS	BMM150 MPU6886
Battery	110mAh @ 3.7V
Antenna	2.4G 3D Antenna
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	54.2 x 54.2 x 17.9mm
Weight	49.2g
Case Material	Plastic ( PC )
